VSDISPLAY 7 Inch 800x480 LCD Screen 1000 Nits High Brightness HSD070GDW6 Display with VGA AV LCD Controller Board VS-TY2662-V1
Product details
| Management number | 222659115 | Release Date | 2026/05/04 | List Price | $32.00 | Model Number | 222659115 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

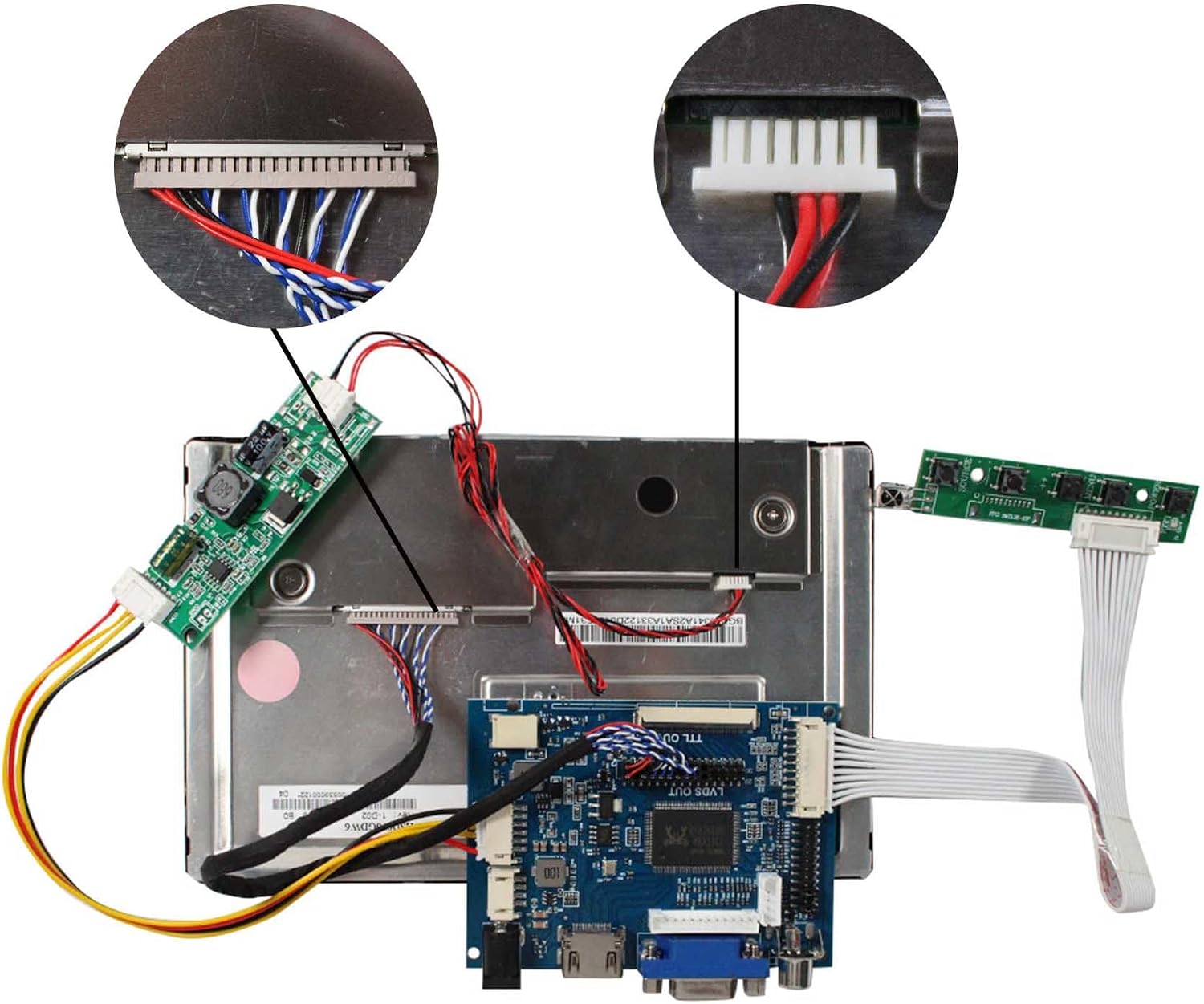

LCD Controller Board: VGA AV LCD Board Work for LVDS Interface LCD Screen50Pin TTL Connector for 7inch~10.1inch LCD ScreenInput Power Adapter: 12Vdc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGA AVReversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 91mm x 66mm x 12mm7" HSD070GDW6 800x480 LCD Screen:Display Mode, Normally Black, TransmissiveResolution 800(RGB)×480Outline Size 169.8 ×109.7×8.9(H×V×D)Display Area 152.4 × 91.4 (H×V)Brightness 1000 cd/m² (Typ.)Contrast Ratio 800:1 (Typ.) (TM) Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]Signal Interface LVDS (1 ch, 8-bit) , Connector , 20 pinsBacklight LEDInput Voltage 3.3V (Typ.)Packing list:1× +VGA+AV LCD Controller Board VS-TY2662-V11× 7inch HSD070GDW6 800X480 1000nit LCD Screen1×Inverter Board1× LVDS Cable1× Keyboard With Cable
- 【Specification】7 inch 800X480 HSD070GDW6 LCD screen and board DIY kit;Contrast Ratio 800:1 (Typ.) (TM);Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
- 【High Brightness】1000 cd/m² (Typ.) brightness,can use outdoor
- 【Feature】Little size LCD screen kit,small and portable
- 【Widely Usages】Fit for different DIY project,can used as an extend screen display for pc/laptop/game cabinet monitor
- 【Packing List】1× +VGA+AV LCD Controller Board VS-TY2662-V1;1× 7inch HSD070GDW6 800X480 1000nit LCD Screen;1×Inverter Board;1× LVDS Cable;1× Keyboard With Cable
| UPC | 619438630651 |
|---|---|
| Brand | VSDISPLAY |
| Voltage | 12 Volts |
| Brightness | 1000 Candela |
| Resolution | 800x480 |
| Screen Size | 7 Inches |
| Aspect Ratio | 16:9 |
| Display Type | LCD |
| Manufacturer | VSDISPLAY |
| Refresh Rate | 60 Hz |
| Screen Finish | Glossy |
| Native Resolution | 800 x 480 |
| Display Technology | LCD |
| Additional Features | High Brightness, Portable |
| Hardware Connectivity | Unknown |
| Item Dimensions D x W x H | 0.35"D x 6.69"W x 4.32"H |
| Specific Uses For Product | Multimedia/Gaming/Business/Personal |
| Display Resolution Maximum | 800 x 480 Pixels |
